Home /Products/FM 200 Cylinders/Thickness Of Cylinder 6.3mm FM200 Fire Extinguisher For Battery Room

Thickness Of Cylinder 6.3mm FM200 Fire Extinguisher For Battery Room

1 set
MOQ
negotiation
Price
Thickness Of Cylinder 6.3mm FM200 Fire Extinguisher For Battery Room
Features Gallery Product Description Request A Quote
Features
Specifications
Model No.: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2
Storage Pressure: 4.2MPa;2.5Mpa
Volume (L): 32，40，52， 70, 100，106，120, 147，150, 180
Internal Diameter: 300, 350, 400
Color: Red
Highlight:

6.3mm fire extinguisher for battery room

,

FM200 fire extinguisher for battery room

,

6.3mm FM200 fire extinguisher
Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMP32/2.5, QMP40/4.2, QMP52/2.5, QMP70/4.2, QMP100/4.2, QMP106/2.5, QMP120/4.2, QMP147/2.5, QMP150/4.2, QMP180/2.5, QMP180/4.2
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
Product Description

Cylinder For Automatic FM200 Fire Suppression System Without Pollution In Battery Room



Description



The table shows the specific parameters of several conventional bottles of different sizes



Cylinder 40 70 90 100 120 150 180
Nominal volume(L) 40 70 90 100 120 150 180
Filling capacity(kg) 46.4 81.2 104.4 116 139.2 174 208.8
Designed thickness of cylinder(mm) 5.4 6.3 6.3 6.3 6.3 7.2 7.2
Designed thickness of head(mm) 4.8 5.7 5.7 5.7 5.7 6.5 6.5
Material standard GB6653-2008
Specified value of chemical ingredients of material

C<0.20% Si<0.35% Mn<1.50%

P<0.025% S<0.015% P+SM0.04%
Test of hydraulic pressure 8.4MPa
Test of sealing pressure 5.6MPa







Components



The bottle part is composed of steel cylinder and cylinder valve

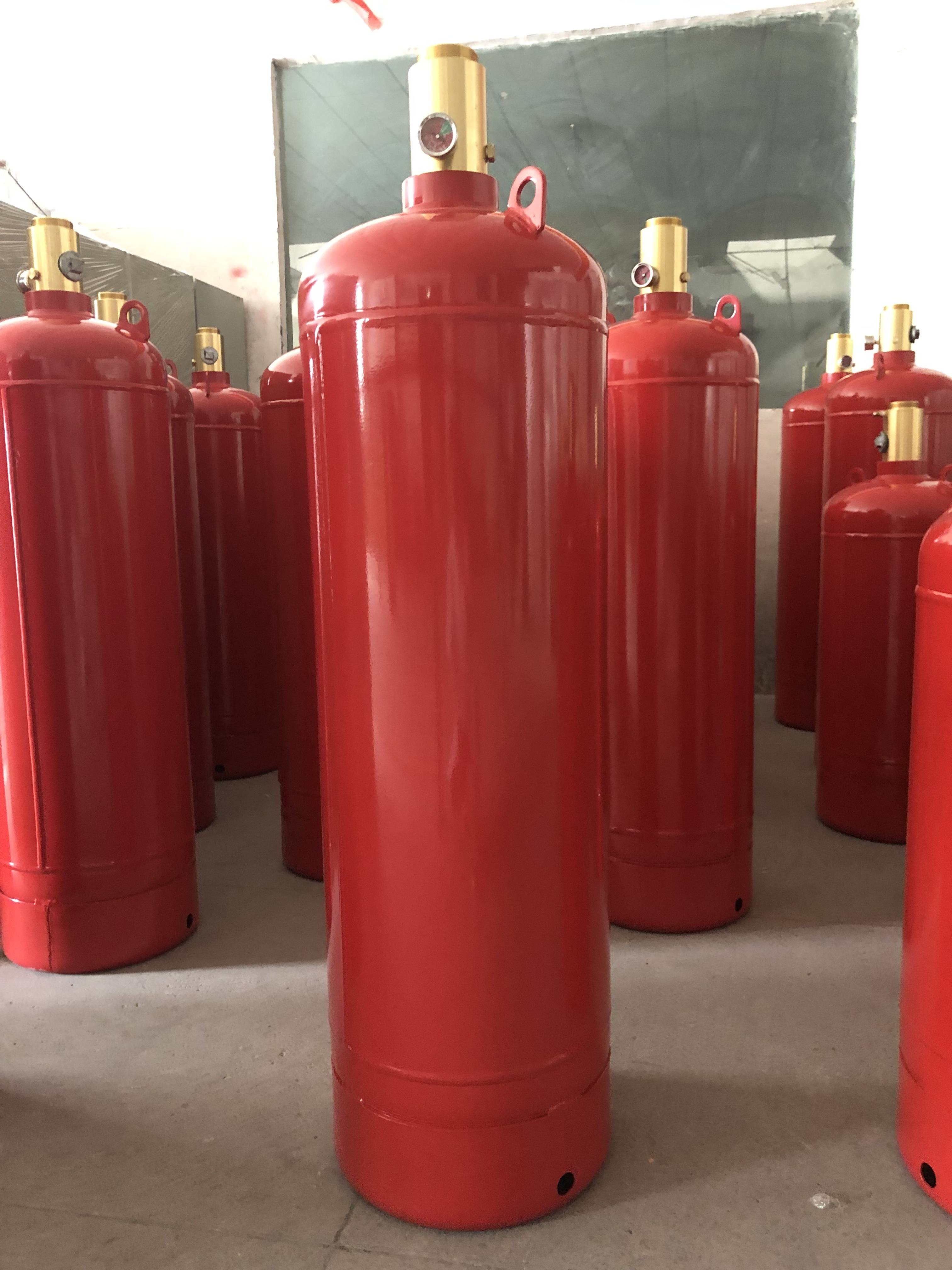

Thickness Of Cylinder 6.3mm FM200 Fire Extinguisher For Battery Room 0





Application



• Computer room, communication room, power distribution room, library, archives,

Museum, etc.



• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas

source before extinguishing occur, etc.

Thickness Of Cylinder 6.3mm FM200 Fire Extinguisher For Battery Room 1





Package



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

Thickness Of Cylinder 6.3mm FM200 Fire Extinguisher For Battery Room 2

Tag:

FM 200 Cylinders

fm200 gas cylinder

hfc 227ea cylinder
