Fm200 Fire Suppression System Fire Extinguisher Accessories Heat Detector 58g

200 pieces
MOQ
negotiation
Price
Fm200 Fire Suppression System Fire Extinguisher Accessories Heat Detector 58g
Features Gallery Product Description Request A Quote
Features
Specifications
Model No.: JTW-ZD-920KE
Working Ambient: -10℃～+55℃
Working Voltage: DC24V
Alarm Current:: 1mA～10mA
Working Humidity:: ≤95%
Monitor Current:: ＜50uA
Warning Temperature:: 54℃～70℃
Highlight:

Fm200 Fire Extinguisher Accessories

,

Fm200 Fire Suppression System Heat Detector

,

Heat Detector 58g
Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Model Number: JTW-ZD-920KE
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 5000 pieces per week
Product Description

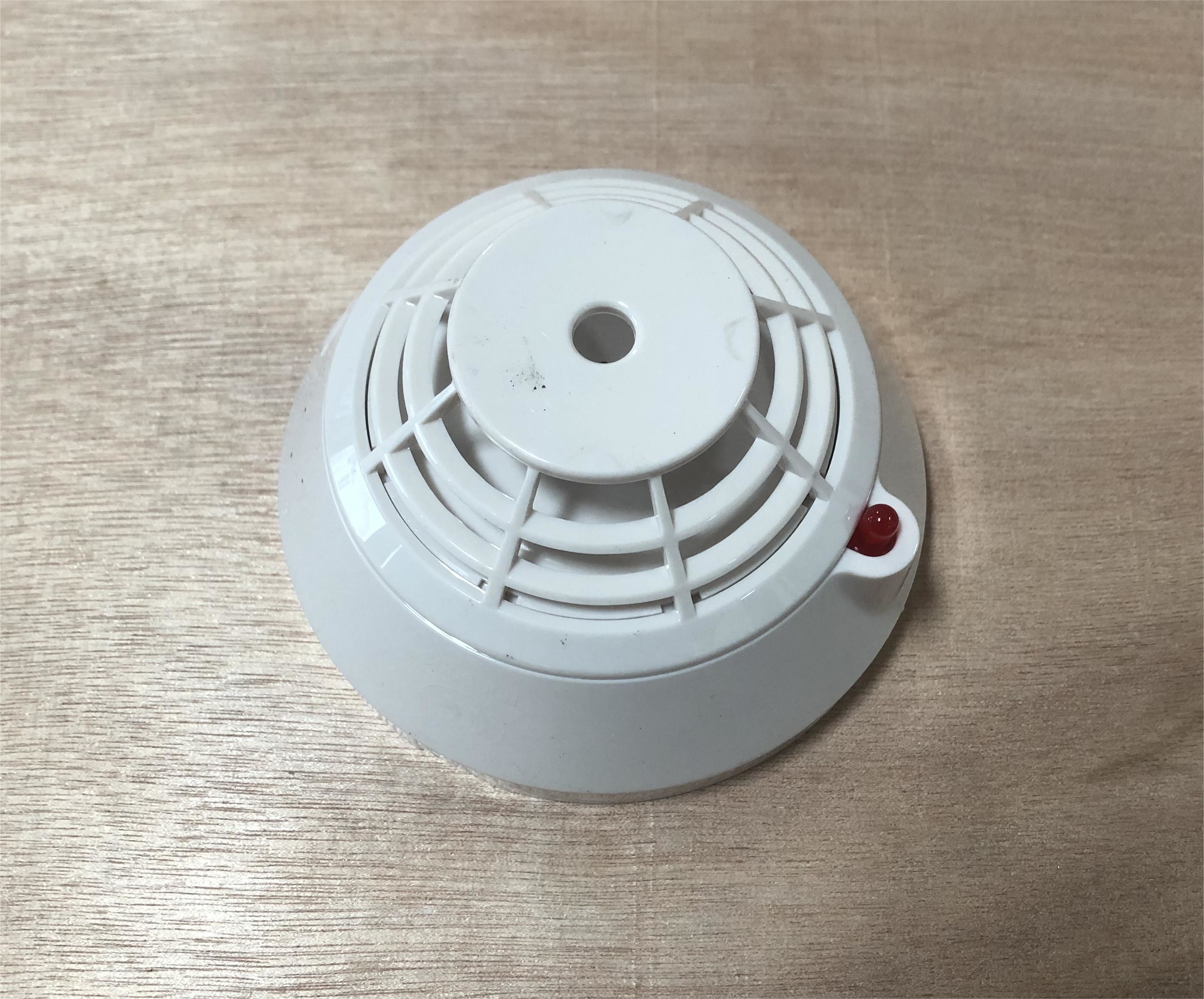

Fire Extinguisher Accessories Fm200 Fire Suppression System Heat Detector



Heat detector is a fire alarm device designed to respond when the convective heat of a fire raises the temperature of a thermal element. It uses high-quality linear sensors and SMD technology. It has the characteristics of high sensitivity, stability and reliability, low power consumption, beautiful and durable, and easy to use.



The detector realizes the real-time collection of appropriate smoke concentration data and sends the data back to the fire alarm control panel. It can also receive and execute control commands from the fire alarm control panel





Parameter



Model JTW-ZD-920KE
Working ambient -10℃～50℃
humidity ≤95%
Working voltage DC24V(range: DC18V～30V)
Monitor current ＜50μA@DC24V
Alarm current 1mA～10mA
Flashing frequency 5~8s
Atmosphere pressure 86-106kPa
Anti-explosion indication ExibⅡCT6
Anti-explosion parameter: Ui=28V,Ii=93mA,Ci≈0μF,Li≈0mH
Size(mm) 100×43
Weight 58g
Standard GB4716-2005
