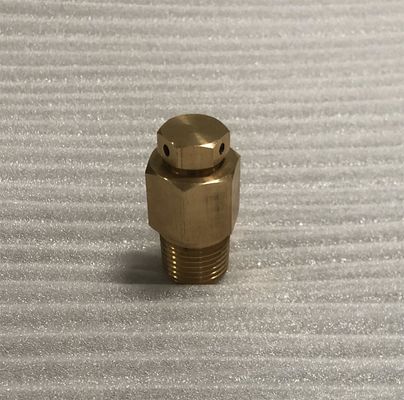

FM200 System Safety Valve Used To Release Excess Gas In The Pipe
Installed on the header, when the system is over-pressurized, the safety diaphragm in the valve will automatically rupture, thus achieving the protection system.
Parameter
| Model No. | QAX11 |
| Relief pressure | 7±0.35Mpa |
| Connecting thread | RC 1/2'' |
| Weight | 0.12kg |
| Height | 46mm |
Components
Application requirements and technical parameters
The safety diaphragm should be tested and tested with the collector tube for air tightness test. The pressure relief pressure is 7±0.35Mpa.
