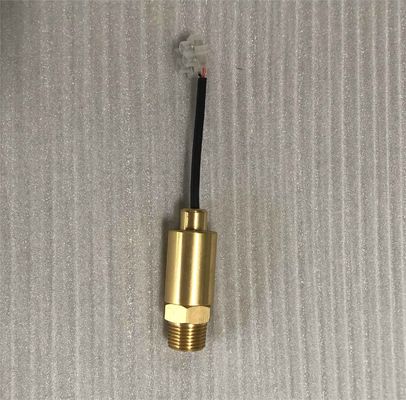

Fire Extinguisher Accessories fm200 Gas System pressure switch
Installed on the main road leading to the protection zone pipe network, the signal is fed back to the fire extinguishing controller after the fire extinguishing agent is released, and then the fire extinguishing controller lights up the spray door light and sends a linkage signal.
Parameter
| Model No. | QXF0.6/5.3 |
| Nominal pressure | 5.3MPa |
| Operating pressure | 0.6±0.01MPa |
| Working voltage | DC 24V |
| Connecting thread | R 1/2'' |
| Weight | 0.2046kg |
Components
It consists of a base, a housing, a lock cap, a signal lead, a piston, a micro switch, and the like. The outer casing and the piston are made of copper alloy.
