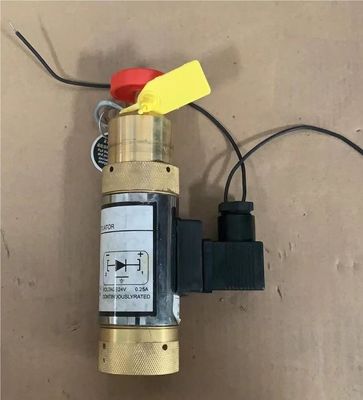

Solenoid Actuator Installed On Cylinder Non Corrosive FM200 Fire Suppression System
Structure of electromagnetic drive device: DC valve electromagnet, fault device, manual emergency button, spring, etc
Working principle of electromagnetic drive device: The electromagnetic actuator is installed on the container valve of the fire extinguishing equipment driving cylinder group.
When a fire alarm occurs, the fire alarm controller outputs DC-24V current,Connect the electromagnet in the drive unit, The electromagnet acts to push the puncture device, and the puncture needle breaks through the sealing membrane on the container valve in the drive cylinder group, opening the container valve, thereby releasing N2 in the drive cylinder group, and driving the corresponding selection valve through the drive pipeline to open the container valve of the fire extinguishing agent cylinder group
Parameter
| Model No. | MFZ1-50F/24V |
| Driving force | 50N |
| Working voltage | DC24V |
| Starting current | 0.25A |
| Weight | 1.28kg |
| height | 168mm |
| Stroke | 4.5mm |
| Diameter | G1 |
