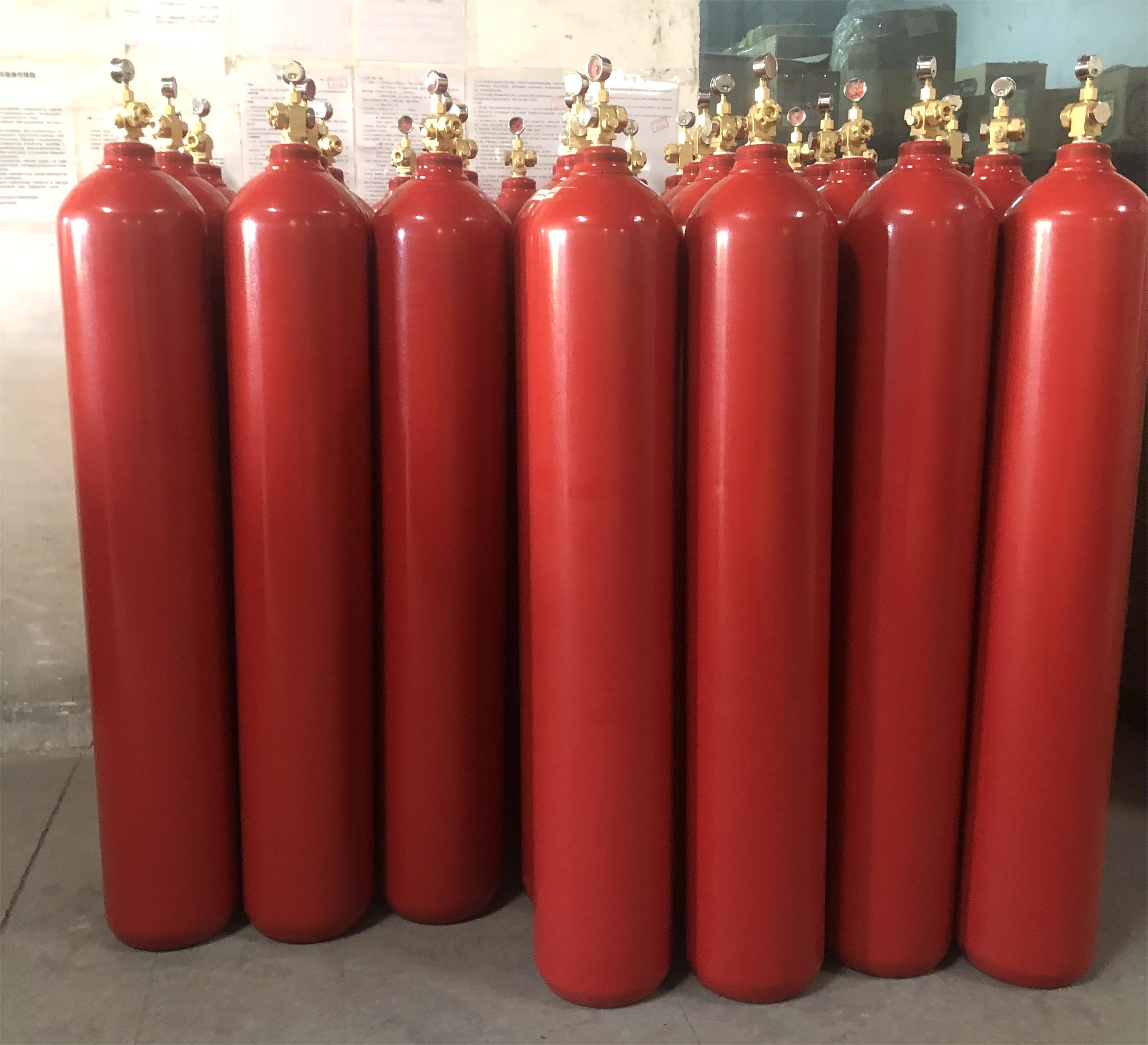

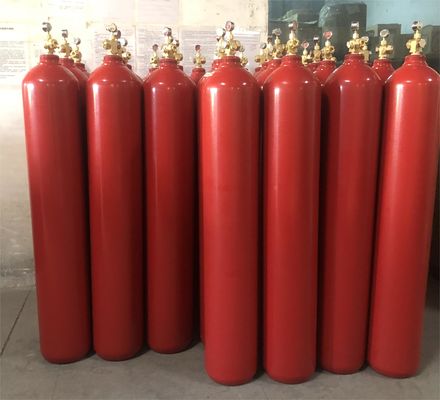

Nitrogen IG100 Argonite Gas Cylinders Fire Extinguishing System 80L 140L

1 set
MOQ
negotiation
Price
Nitrogen IG100 Argonite Gas Cylinders Fire Extinguishing System 80L 140L
Features Gallery Product Description Request A Quote
Features
Specifications
Cylinder Volume: 80L;140L
Capacity: 22.9kg, 34.06kg
Pattern Of Extinguishing: Enclosed Flooding
Agent: IG100(100% Pressurized Nitrogen)
Working Pressure: 20MPa, 30MPa
Max. Working Pressure: 23.2MPa, 36.6 MPa
System Start Mode: Electrical Automatic, Electrical Manual, Mechanical Emergency Start
Color: Red
Highlight:

Nitrogen IG100 Argonite Gas Cylinders

,

Nitrogen IG100 Fire Extinguishing System

,

Argonite Gas Cylinders 80L 140L

Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: DMP80/20, DMP140/20, DMP80/30, DMP140/30
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 300 sets per week
Product Description

Cylinder For High-Quality Inert Gas Nitrogen IG100 Fire Extinguishing System Without Pollution



IG-100 uses Nitrogen for a clean, safe and 100% ecological extinguishing. This gas is widely used in variety of extinguishing systems due to its excellent pressurization conditions.



In this case it complies with equal smothering efficiency by reducing the oxygen concentration to extinguish the fire, while leaving a percentage of oxygen suitable for occupied areas. Because of this feature, people can be protected where there is the possibility if they are in the enclosure area at the time of the fire, ensuring their safe evacuation both in terms of the level of oxygen in the room, and the absence of chemicals in the discharge. In addition, its physical and dispersion properties help maintain visibility during the evacuation.





Parameters



No. Specification IG100(100% nitrogen)
1 Capacity 80Ltr 140ltr
2 Working Pressure 20MPa 30MPa 20MPa 30MPa
3 Device Model QMH20/80 QMH30/80 QMH20/140 QMH30/140
4 Filling Capacity of Gas 18.38kg 27.57kg 42kg 58.2kg
5 Outside Diameter of Cylinder Φ279mm Φ267mm Φ406mm Φ356mm
6 Height of Cylinder 1710mm 1870mm 1460mm 1925mm
7 Filling Rate 0.299kg/L 0.415kg/L 0.300kg/L 0.201kg/L
8 Spraying Time ≤120s
9 Power DC24V/1.6A
10 Nitrogen Pressure of Driving Device 6.0±1.0MPa(20℃)
11 Condition of Reserving Room for Container temperature: 0~50℃



Features and benefits

  • Suitable for occupied areas
  • Electrically non – conductive
  • Chemically inert
  • Colourless, odourless and flavourless
  • No residue to clean up after the discharge
  • Zero Ozone Depletion Potential (ODP)
  • No greenhouse effect
  • No global warming impact
  • No decomposition products
  • No fog and no loss of post-discharge visibility
  • Non corrosive/toxic
  • Stored as a gas
  • Suitable for occupied areas
  • Excellent post-discharge visibility
  • Very low refill cost.
  • Easy to obtain anywhere in the world



Application

  • DATA Centre
  • Comms Rooms
  • Telecommunication facilities
  • UPS Rooms
  • Medical facilities



Package



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
