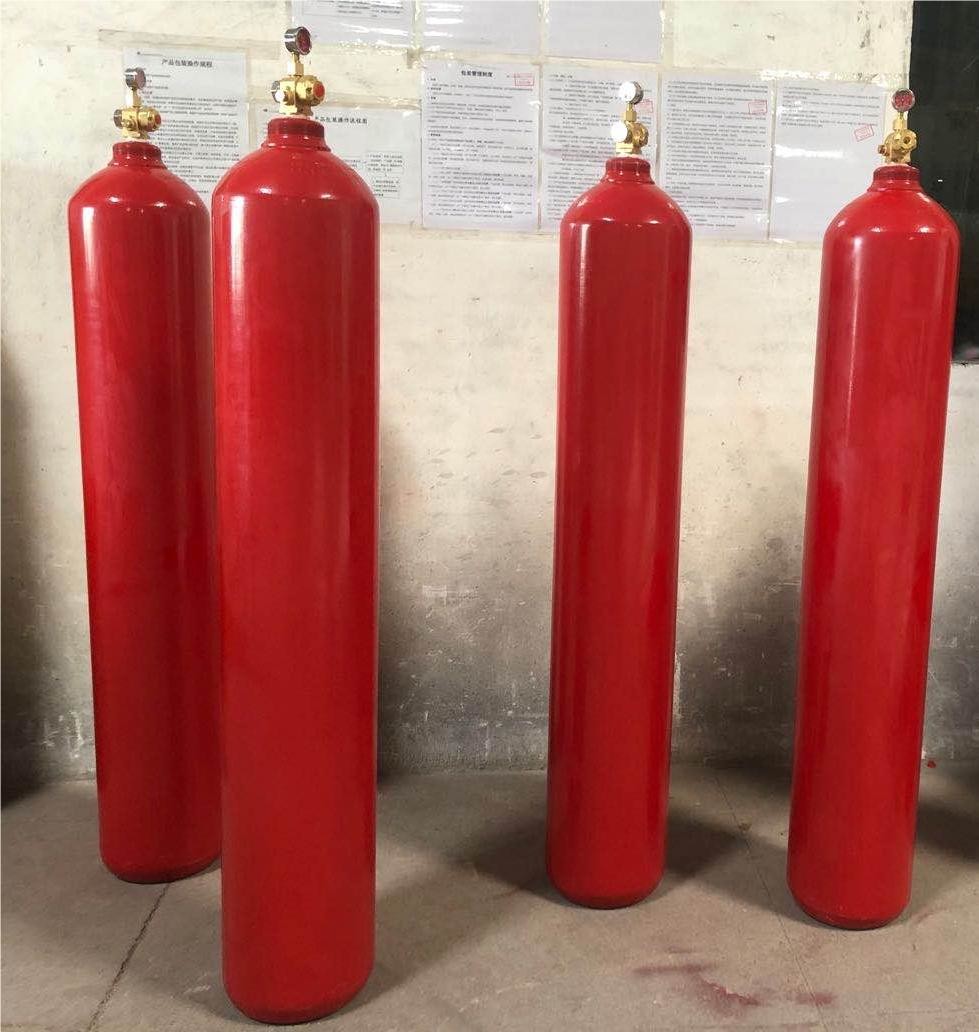

Inergen IG541 Fire Suppression System Argonite Gas Cylinders 20MPa 30MPa

1 set
MOQ
negotiation
Price
Inergen IG541 Fire Suppression System Argonite Gas Cylinders 20MPa 30MPa
Features Gallery Product Description Request A Quote
Features
Specifications
Cylinder Volume: 80L;140L
Capacity: 22.9kg, 34.06kg
Pattern Of Extinguishing: Enclosed Flooding
Agent: IG541(52% Nitrogen, 40% Argon, 8% Carbon Dioxide)
Working Pressure: 20MPa, 30MPa
Max. Working Pressure: 23.2MPa, 36.6 MPa
System Start Mode: Electrical Automatic, Electrical Manual, Mechanical Emergency Start
Color: Red
High Light:

inergen ig541 Argonite Gas Cylinders

,

IG541 fire suppression system 20MPa

,

inergen ig541 30MPa

Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: HMP80/20, HMP140/20, HMP80/30, HMP140/30
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 300 sets per week
Product Description

Cylinder For Inert Gas Inergen IG541 Fire Extinguishing System Without Pollution In Battery Room



IG-541 Inergen gaseous is an environmentally friendly extinguishing agent, consisting of gases which are already present naturally in the earth's atmosphere. IG-541 is an inert gas, which means that it takes no part in the combustion process. IG-541 contains no liquid, is non-toxic and non-flammable.



IG-541 Inergen is a composite gas (52% Nitrogen, 40% Argon, 8% CO2) which is mixed and stored at a pressure of 300 bar. It is electrically non-conductive, which leaves no residue. At the correct design concentration, it is suitable for the protection of occupied areas.



IG-541 is a very effective fire extinguishing agent that can be used to protect a wide range of applications. It is suitable for class A, B, C, D and E fires, including risks with live electrical equipment. IG-541 extinguishing method is based on oxygen depletion.





Parameters



No. Specification IG541(52% nitrogen;40% argon,8carbon dioxide)
1 Capacity 80Ltr 140ltr
2 Working Pressure 20MPa 30MPa 20MPa 30MPa
3 Device Model QMH20/80 QMH30/80 QMH20/140 QMH30/140
4 Filling Capacity of Gas 22.37kg 33.56kg 42kg 58.2kg
5 Outside Diameter of Cylinder Φ279mm Φ267mm Φ406mm Φ356mm
6 Height of Cylinder 1710mm 1870mm 1460mm 1925mm
7 Filling Rate 0.299kg/L 0.415kg/L 0.300kg/L 0.201kg/L
8 Spraying Time ≤120s
9 Power DC24V/1.6A
10 Nitrogen Pressure of Driving Device 6.0±1.0MPa(20℃)
11 Condition of Reserving Room for Container temperature: 0~50℃



Features and benefits



1. Compared with the traditional 15MPa system, the 30MPa system saves 25%-50% of the quantity of extinguisher cylinders.

2. It effectively reduces the floor area between the cylinders and improves the overall use value and utilization rate of the building.

3. Constant low pressure release of 6MPa reduces the cost of piping and components for the whole system.

4. The constant release pressure of 6MPa provides a more durable and effective pressure, with a transmission distance of up to 200 meters.

5. Whole system release by low pressure, it will be less impact on site personnel, equipment and building structure, and it will be more safety.

6. The external constant pressure-relief device only bears the pressure when the system is discharged, which is convenient for disassembly and maintenance, and effectively reduces the system failure rate.

7. After discharging, the system can be put into operation quickly with simple disassembly and secondary filling witn agent without replacing any parts.

8. It reduces the area of opening hole of gas pressure relief port, directly reduces the input cost of safety pressure relief device, and installs and arranges safety buckle become more simply.

9. IG55 fire extinguishing system can be widely used in important places that need rapid response to fire. There are workers, sudden fires and sensitive to chemical reactions on the site of the protection zone, the fire extinguishing system can effectively protect the safety of personnel and property.





Application



Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.





Package



We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
