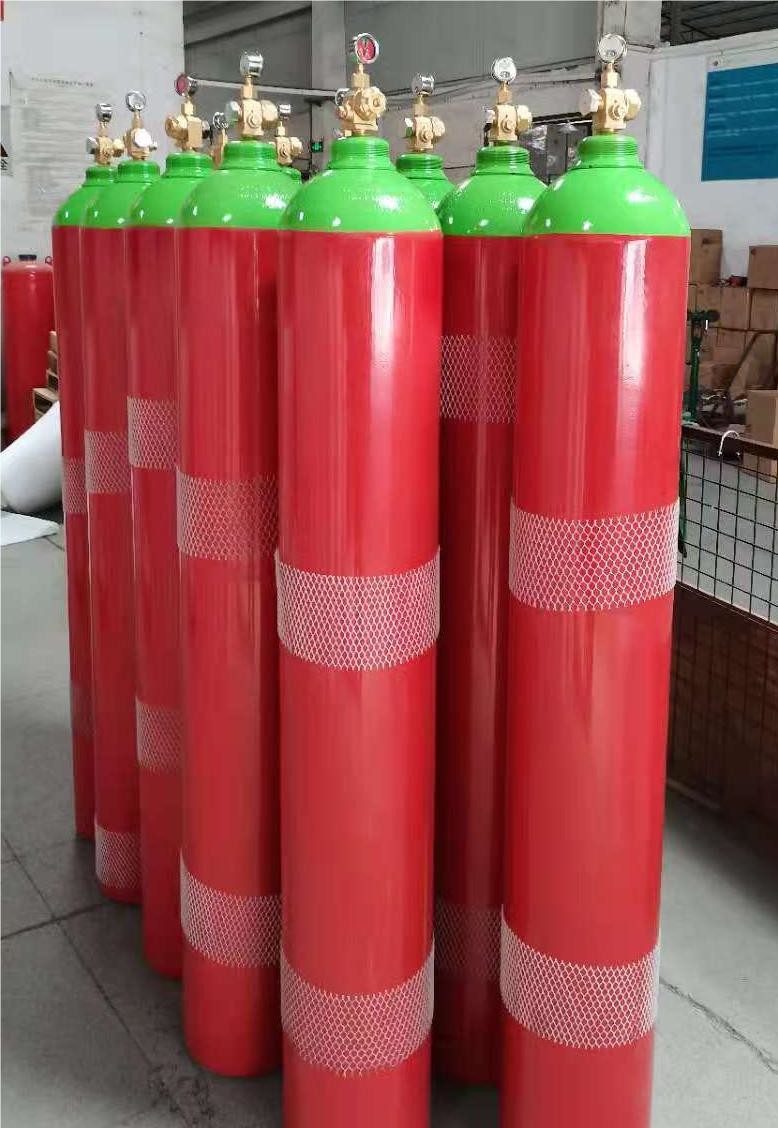

Cylinder For High-Quality Inert Gas Nitrogen IG100 Fire Extinguishing System Without Pollution
IG100 uses 100% pressurized nitrogen, which accounts for 78% of the atmosphere, as the extinguishing agent. Its ozone depletion potential (ODP) and global warming potential (GWP) are zero. The atmospheric retention time is zero without any adverse effects on the environment. It fully integrates the design concept of the fire-extinguishing system in the new era, so that the product successfully has the function of environmental protection and efficient fire-fighting.
IG100 characteristics: protecting the ecological environment of the earth, safety and hygiene do not interfere with vision, no stain caused by extinguishing agent, durable of fire fighting effect. Nitrogen can be separated from the air and produced from a wide range of sources at a cheap charge.
Parameters
| No. | Specification | IG100(100% nitrogen) | |||
| 1 | Capacity | 80Ltr | 140ltr | ||
| 2 | Working Pressure | 20MPa | 30MPa | 20MPa | 30MPa |
| 3 | Device Model | QMH20/80 | QMH30/80 | QMH20/140 | QMH30/140 |
| 4 | Filling Capacity of Gas | 18.38kg | 27.57kg | 42kg | 58.2kg |
| 5 | Outside Diameter of Cylinder | Φ279mm | Φ267mm | Φ406mm | Φ356mm |
| 6 | Height of Cylinder | 1710mm | 1870mm | 1460mm | 1925mm |
| 7 | Filling Rate | 0.299kg/L | 0.415kg/L | 0.300kg/L | 0.201kg/L |
| 8 | Spraying Time | ≤120s | |||
| 9 | Power | DC24V/1.6A | |||
| 10 | Nitrogen Pressure of Driving Device | 6.0±1.0MPa(20℃) | |||
| 11 | Condition of Reserving Room for Container | temperature: 0~50℃ | |||
Features and benefits
Application
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
