Temperature Control 1.6Mpa FM200 Fire Suppression Extinguisher Without Residue For UPS Room
It's an environment protection, good electrical insulation and great efficiency in extinguishing fire, widely used in the fire protection of power distribution, archive rooms, transforming houses,computer rooms,etc.Our FM200 fire suppression system show the characteristics advancing technologies, easy operation, good structure,and convenient maintenance,etc.
Parameters
| No. | Specifications | Parameters |
| 1 | Tank size | 8Ltr, 10Ltr, 16Ltr, 20Ltr, 30Ltr |
| 2 | Device model | XQQW8/1.6, XQQW10/1.6, XQQW16/1.6, XQQW20/1.6, XQQW30/1.6 |
| 3 | Storage pressure | 1.6MPa |
| 4 | Maximum working pressure | 2.5MPa |
| 5 | Discharge time | ≤10s |
| 6 | Maximum filling Density | 1 kg/L |
| 7 | Activating Temperature | 68℃ |
| 8 | Ambient working Temperature | 0℃～50℃ |
Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.
| Device model | Filling amount (kg) | Maximum working pressure(MPa) | Storage pressure (MPa) | Maximum coverage(m³) | Starting mode |
| XQQW8/1.6 | 8 | 2.5 | 1.6 | 11.11 | temperature sensor Activating Temperature: 68℃ |
| XQQW10/1.6 | 10 | 2.5 | 1.6 | 13.89 | |
| XQQW16/1.6 | 16 | 2.5 | 1.6 | 22.22 | |
| XQQW20/1.6 | 20 | 2.5 | 1.6 | 27.78 | |
| XQQW30/1.6 | 30 | 2.5 | 1.6 | 41.67 |
Components

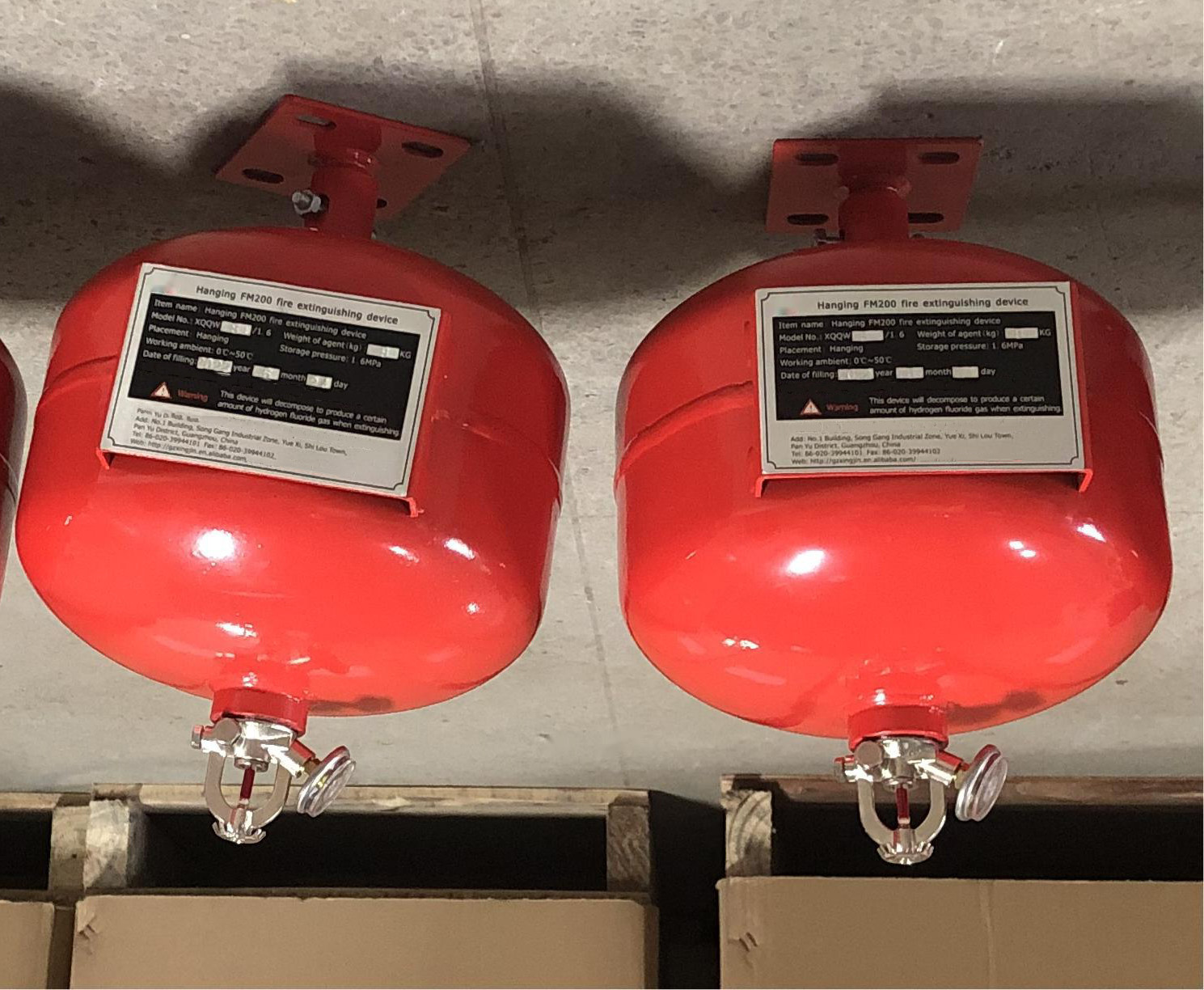

One spherical pressure tank, fire extinguishing agent(HFC-227ea, same as FM200), hanging mounting, thermal sensor(one little glass tube filled with liquid whose volume will be changed by temperature).
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
