Environment-Friendly 0.6kg/L CO2 Fire Suppression System For Anechoic Chamber

1 set
MOQ
negotiation
Price
Environment-Friendly 0.6kg/L CO2 Fire Suppression System For Anechoic Chamber
Features Gallery Product Description Request A Quote
Features
Specifications
Cylinder Volume: 70Ltr
Capacity: 42kg
Pattern Of Extinguishing: Enclosed Flooding
Agent: CO2
Working Pressure: 5.7MPa
Max. Working Pressure: 12.4MPa
Power: DC24V/1.6A
Discharge Time: ≤60s
Starting Mode: Automatic, Electrical Manual, Mechanical Emergency Manual
Internal Diameter: 270mm
Height: 1448mm
High Light:

Anechoic Chamber CO2 Fire Suppression System

,

co2 suppression system 0.6kg/L

,

0.6kg/L CO2 Fire Suppression System

Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QME70
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 300 sets per month
Product Description

Environment-Friendly CO2 Fire Suppression System Without Pollution For Anechoic Chamber



Description



Superior Suppression.

Carbon dioxide is a colorless, odorless, electrically-nonconductive gas whose density is approximately 50% greater than air. Our high pressure CO2 System suppresses fire by providing a blanket of heavy gas that absorbs heat from the fire and reduces the oxygen content of the atmosphere to a point where combustion becomes impossible.



Damage-Free.

A naturally-occurring atmospheric element, carbon dioxide dissipates into the air allowing an almost immediate return to “business as usual” without the interruption of a costly clean-up and the expense of damage to assets from suppressant residue. This results in fewer repair costs and reduced downtime.



Air Giant Quality.

At Air Giant, we know a fire-related business interruption can keep your company from being competitive in a global market. We are committed to researching, developing and providing the most advanced fire protection technology and best customer service in the industry. We understand the marketplace demands an “up and running” business world around the clock. We are dedicated to keeping industry “in business” by keeping fires out.





Parameters



No. Specification Technical Parameter
1 Device Model QME70
2 Capacity 70Ltr
3 Filling Volume of Gas 42kg
4 Working Pressure 5.7MPa
5 Max Working Pressure 12.4MPa
6 Spraying Time ≤60s
7 Max Filling Rate 0.6kg/L
8 Power DC24V/1.6A
9 Working Pressure of Releasing Device

Container Valve: 19±0.95MPa;

Manifold: 15±0.75MPa

10 Nitrogen Pressure of Driving 6.0±1.0Mpa(20℃)
11 Condition of Reserving Room for Container Temperature: 0~50℃





System Composition



Pipe network type of CO2 automatic fire suppression system is mainly composed by three parts. Extinguishing devices and pipe fittings and electrical accessories.

Extinguishing devices are such things, like cylinder to fill and store CO2, frame and driving device(nitrogen cylinder) to trigger the storage cylinder to discharge agent and so on.

Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow and so on.

Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.

These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.

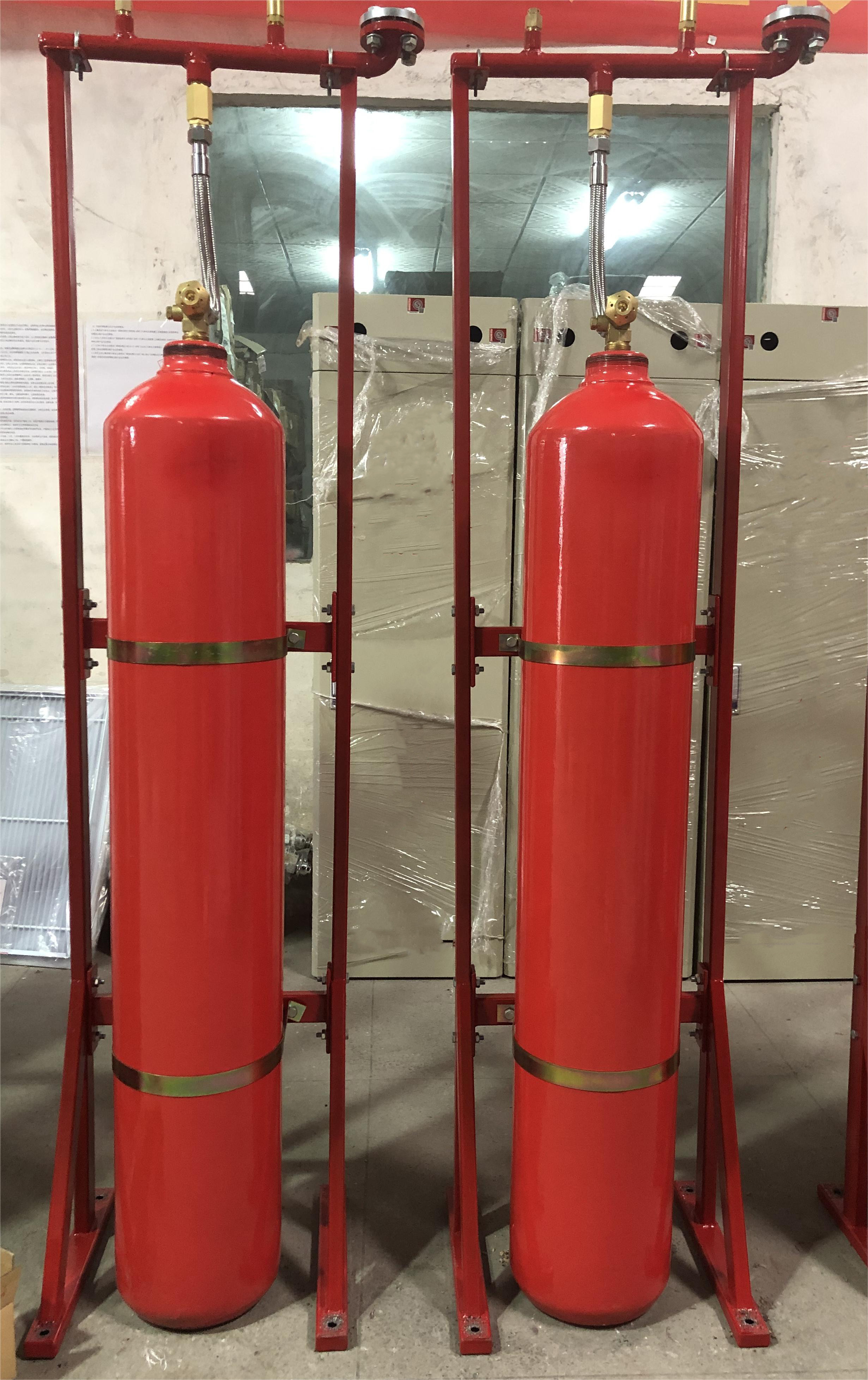

Environment-Friendly 0.6kg/L CO2 Fire Suppression System For Anechoic Chamber 0





Application



Library and archives room, electronic computer room, electrical substation, telecommunication room, hangar, garage, cargo, paint-spraying room, boiler room, control center, etc.



It is suitable for putting out all kinds of the fires of flammable liquid and solid matter; gas fire in which power can be cut off before extinguishing the fire.





Packages



We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

Environment-Friendly 0.6kg/L CO2 Fire Suppression System For Anechoic Chamber 1
