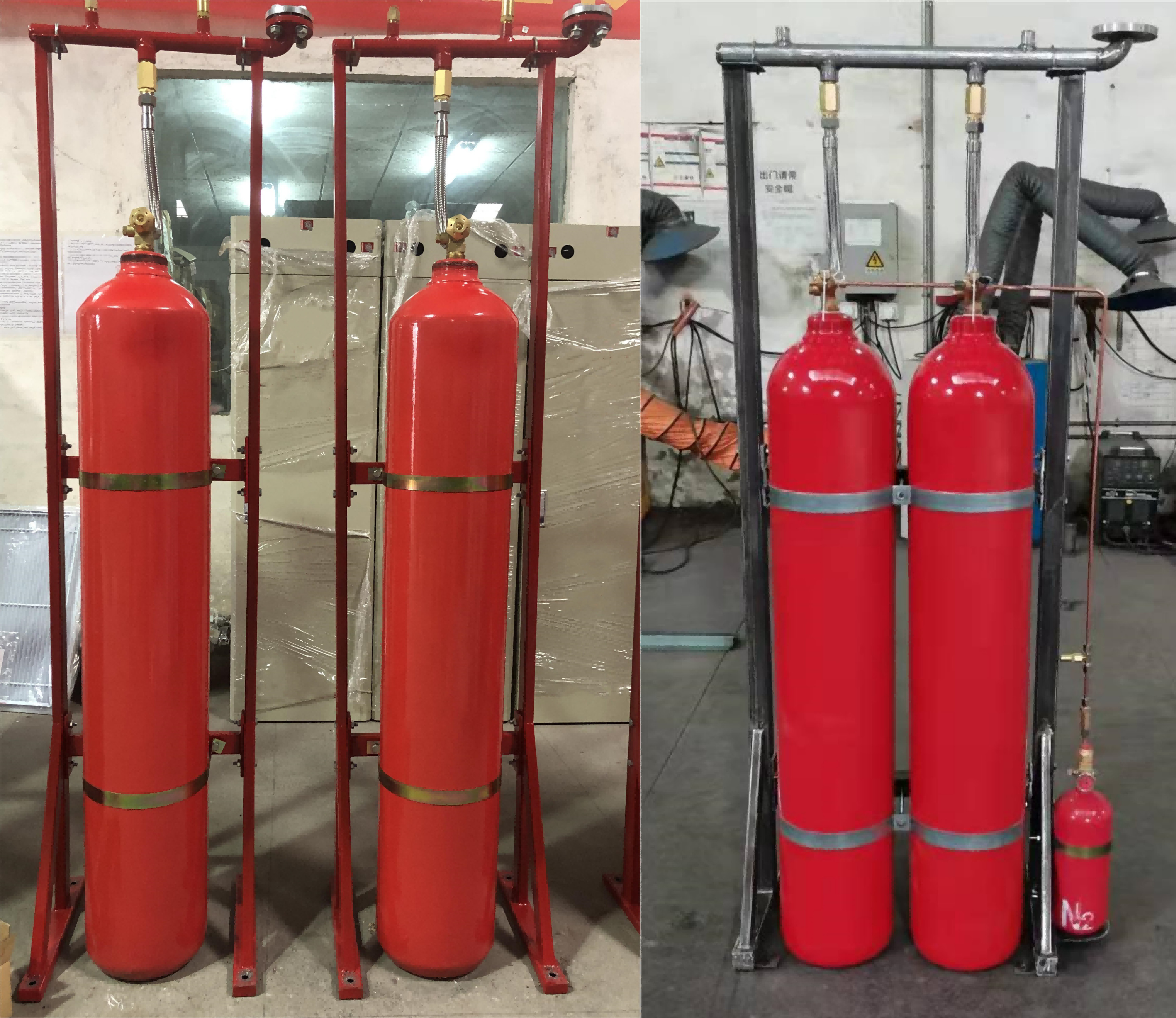

High-Quality CO2 Fire Suppression System Without Pollution For Library
Description
A fire needs oxygen, fuel, and heat to continue to burn. By eliminating one of these three elements, a fire can be suppressed or extinguished. While some suppression agents reduce the heat of the fire, a CO2 fire suppression system eliminates the oxygen to suppress the fire. When the suppression system detects smoke or fire, it then releases the CO2 agent into the space it is protecting. The CO2 level in the space quickly increases as the oxygen level quickly drops causing the fire to be suppressed or extinguished.
CO2 is a colorless, odorless, and electrically non-conductive gas that leaves no residue behind. This means any sensitive equipment that is in the protected space is not damaged by the CO2, which reduces downtime and costs. Once the CO2 has dispersed to safe levels from the protected space, personnel can access any damage from the fire or smoke and quickly get back to work with no cleanup needed.
Parameters
| No. | Specification | Technical Parameter |
| 1 | Device Model | QME70 |
| 2 | Capacity | 70Ltr |
| 3 | Filling Volume of Gas | 42kg |
| 4 | Working Pressure | 5.7MPa |
| 5 | Max Working Pressure | 12.4MPa |
| 6 | Spraying Time | ≤60s |
| 7 | Max Filling Rate | 0.6kg/L |
| 8 | Power | DC24V/1.6A |
| 9 | Working Pressure of Releasing Device |
Container Valve: 19±0.95MPa; Manifold: 15±0.75MPa |
| 10 | Nitrogen Pressure of Driving | 6.0±1.0Mpa(20℃) |
| 11 | Condition of Reserving Room for Container | Temperature: 0~50℃ |
Application
As its name says, the single zone pipe network fm200 fire suppression system is suitable for a single protected zone, whose volume should be less than 3600 cubic meters as well as proportion should be less than 800 square meters. Because of its property and principles of putting off fire, the single zone pipe network fm200 fire suppression system can be used to protect some large and also significant places, such as the followings:
- Computer rooms
- Telecommunication center
- Facilities underground
- Offshore oil extraction
- Library
- Data and paper archives
- Valuable article storage
- Power generator storage room
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
