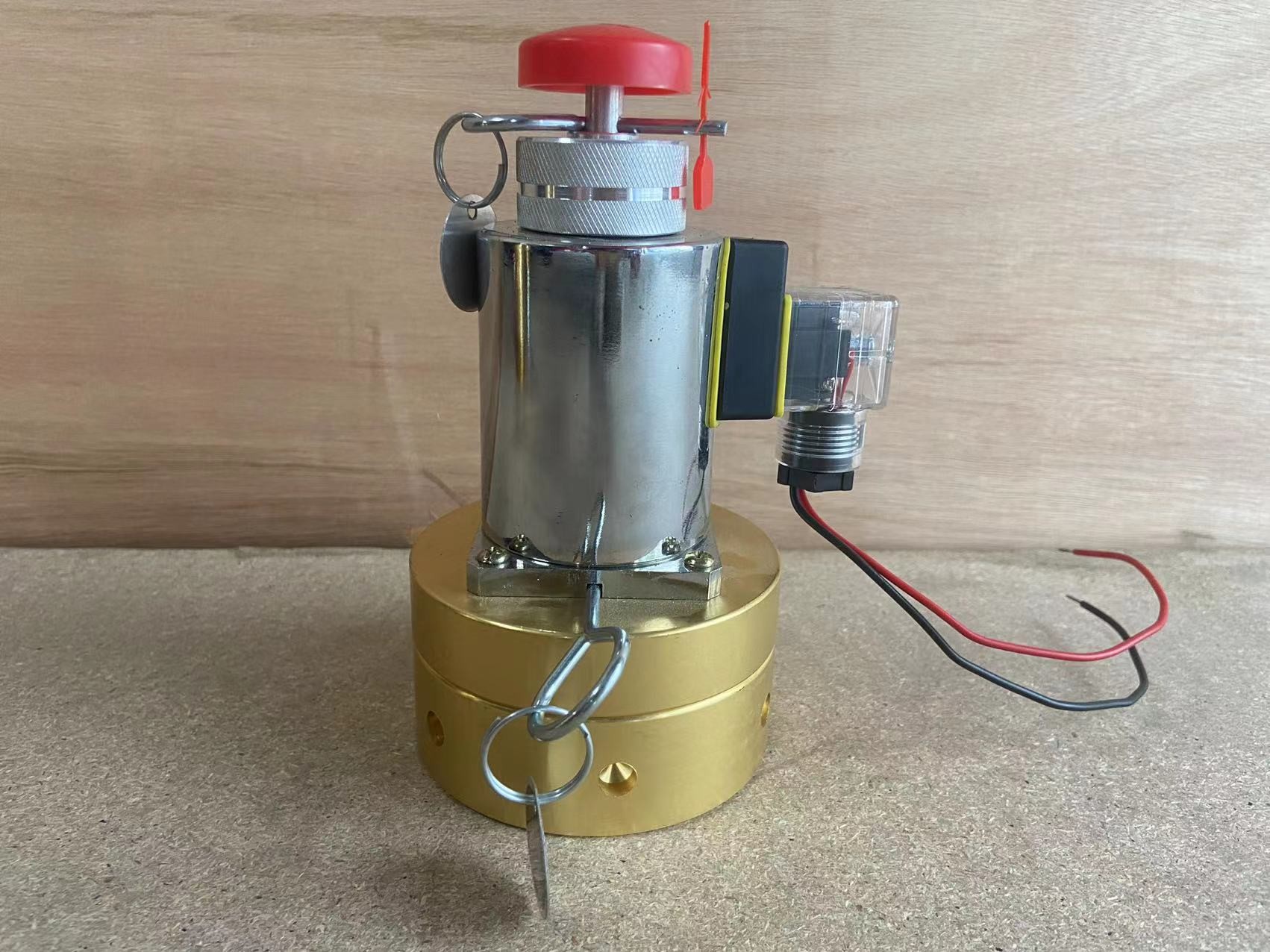

Solenoid Actuator Installed on FM200 Cylinder
Working principle of electromagnetic drive device: solenoid actuator is installed on the container valve in the driving gas cylinder group of the fire extinguishing equipment. When a fire alarm occurs, the fire alarm controller outputs DC-24V current, connects the electromagnet in the driving device, the electromagnet acts to push the puncture device, and the puncture needle breaks through the sealing diaphragm on the container valve in the driving gas cylinder group to open the container valve, so that the N2 in the driving gas cylinder group is released, and drives the corresponding selector valve through the drive pipeline The container valve of the fire extinguishing agent bottle group is open.
Structure of electromagnetic drive device: mainly composed of electromagnet for DC valve, breakdown device, manual emergency button, spring, etc
Parameter
|
Model No. |
MFZ1-90F/24V |
|
Driving force |
90N |
|
Working voltage |
DC24V |
|
Starting current |
1.6A |
|
Weight |
2.9kg |
|
Height |
165mm |
|
Diameter |
M70*2mm |
Components
