4.2MPa Hfc227ea Fire Suppression System For Telecommunication Room

1 set
4.2MPa Hfc227ea Fire Suppression System For Telecommunication Room
Features Gallery Product Description Request A Quote
Storage Pressure: 4.2MPa
Spraying Time: ≤10s
Filling Density: ≤950kg/m3
Nominal Pressure: 5.3MPa
Test Pressure: 8.4MPa
Working Power: DC 24V 1.6A
Working Temperature: 0℃~50℃
Protected Zone Range: Proportion: ≤800m² ; Volume: ≤3600m³
Starting Mode: Automatic, Electrical Manual, Mechanical Manual
Cylinder Volume: 40L、70L、100L、120L、150L、180L
High Light:

Telecommunication Room Hfc227ea Fire Suppression System


4.2MPa Hfc227ea Fire Suppression System


Telecommunication Room hfc227ea fire suppression

Basic Infomation
Place of Origin: China
Brand Name: Air Giant
Model Number: QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 28000 sets per week
Product Description

Hfc227ea Fire Suppression System Without Pollution for Telecommunication Room


Though Fm200 is a new and small part of the gas fire-fighting, it becomes more and more popular all over the world. Because of its born advantages-odorless, colorless and nontoxic, fm200 fire suppression system is considered as the best substitute of the popular series of halon type fire suppression system. The most attractive point is that the fm200 fire suppression system has no damage to the ozone layer, even just 1% possibility. Though the whole system looks very complicated, actually it is easy installation.


This fm200 fire fighting equipment only fits the occupied room or places, because it uses whole flooding way to extinguish the fire.





The pipe network model of fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.


The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.

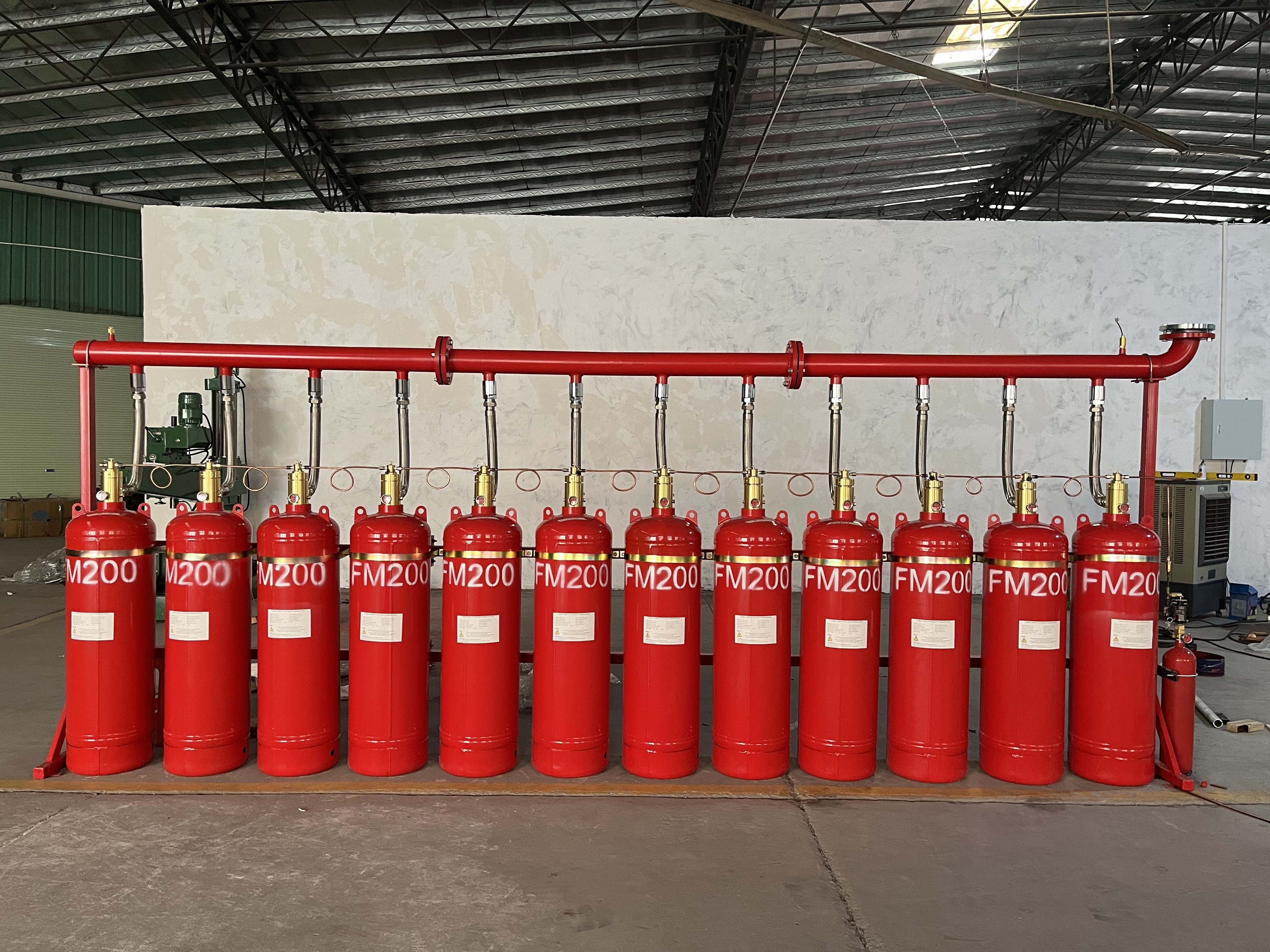

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.


4.2MPa Hfc227ea Fire Suppression System For Telecommunication Room 0


Working principle


Here is the illustration of working principle to whole system


4.2MPa Hfc227ea Fire Suppression System For Telecommunication Room 1





There are a lot of advantages of the single zone fm200 fire suppression system compared to other fire suppression system.


1/ It is the single zone fm200 fire suppression system that can protect the largest volume among the fm200 fire suppression system. Only a single zone system can protect at most 3600 cubic meters.


2/ Using single zone fm200 fire suppression system can help saving money. Obviously, using several systems are more expensive than only using one.


3/ It helps saving place. Because it needs a separate room outside but next to the protected zone, so it won’t waste the places in the protected zone.


4/ The single cylinder has large capacity. It has 120l, 150l, and 180l capacity.




We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

4.2MPa Hfc227ea Fire Suppression System For Telecommunication Room 2
