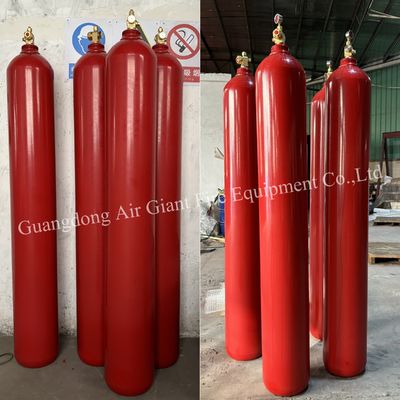

GUANGZHOU Factory Of Inert Gas Argon IG55 IG100 IG541 Fire Extinguishing System Cylinder
Description
IG-55 is a gas made up of a mix of equal parts: 50% argon and 50% nitrogen.
IG-100 is a gas made up of 100% nitrogen.
IG-541 is a gas made up of a mix of 52% Nitrogen, 40% Argon & 8% CO2
Its components are found naturally in the environment, so there is no global warming effect and it does not destroy the ozone layer. Its density is similar to that of air and both argon and nitrogen are clean, non-corrosive, colourless and insipid gases, so they offer great flexibility in adapting to all actuation systems, since they can be used at normal temperatures with materials such as nickel, steel, stainless steel, copper, bronze, tin, etc.
Parameters
| No. | Specification |
IG55(50% Nitrogen;50% Argon) IG100(100% Nitrogen) IG541(52% Nitrogen;40%Argon,8% Carbon Dioxide) |
|||
| 1 | Capacity | 80Ltr | 140ltr | ||
| 2 | Working Pressure | 20MPa | 30MPa | 20MPa | 30MPa |
| 3 | Device Model | QMH20/80 | QMH30/80 | QMH20/140 | QMH30/140 |
| 4 | Filling Capacity of Gas | 22.32kg | 33.48kg | 42kg | 58.2kg |
| 5 | Outside Diameter of Cylinder | Φ279mm | Φ267mm | Φ406mm | Φ356mm |
| 6 | Height of Cylinder | 1710mm | 1870mm | 1460mm | 1925mm |
| 7 | Filling Rate | 0.299kg/L | 0.415kg/L | 0.300kg/L | 0.201kg/L |
| 8 | Spraying Time | ≤120s | |||
| 9 | Condition of Reserving Room for Container | temperature: 0~50℃ | |||
Features and benefits
1. Compared with the traditional 15MPa system, the 30MPa system saves 25%-50% of the quantity of extinguisher cylinders.
2. It effectively reduces the floor area between the cylinders and improves the overall use value and utilization rate of the building.
3. Constant low pressure release of 6MPa reduces the cost of piping and components for the whole system.
4. The constant release pressure of 6MPa provides a more durable and effective pressure, with a transmission distance of up to 200 meters.
5. Whole system release by low pressure, it will be less impact on site personnel, equipment and building structure, and it will be more safety.
6. The external constant pressure-relief device only bears the pressure when the system is discharged, which is convenient for disassembly and maintenance, and effectively reduces the system failure rate.
7. After discharging, the system can be put into operation quickly with simple disassembly and secondary filling witn agent without replacing any parts.
8. It reduces the area of opening hole of gas pressure relief port, directly reduces the input cost of safety pressure relief device, and installs and arranges safety buckle become more simply.
9. IG55 fire extinguishing system can be widely used in important places that need rapid response to fire. There are workers, sudden fires and sensitive to chemical reactions on the site of the protection zone, the fire extinguishing system can effectively protect the safety of personnel and property.
Application
Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Company Introduction
Guangdong Air Giant Fire Equipment Co,.Ltd. is specialized in fire suppression system. Our Headquarter is located in Nansha District, Guangzhou, which is the south door of China mainland. Our company has complete and scientific quality management system.The sincerity, powerful strength and good quality are recognized by fire industry. All staffs welcome everyone from all directions and all industries to come here for visit, guidance and business cooperation.
Our company specializes in all kinds of Heptafluoropropane fire suppression systems,aerosol fire suppression systems, and we possess an experienced research and development team who have more than 20 years work experiences in national fire suppression career.
