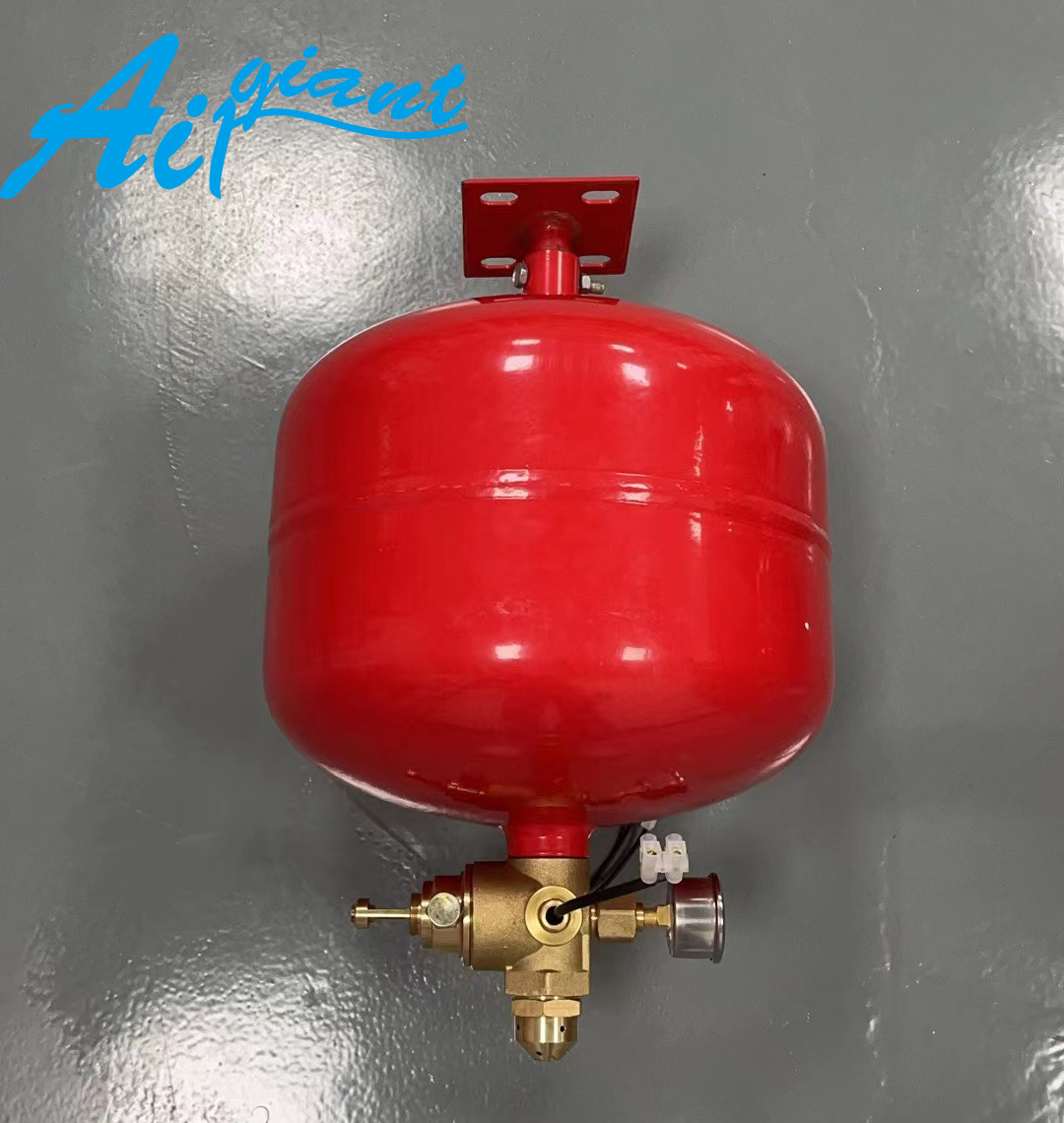

Cafss 20L HFC227ea Fire Suppression Extinguisher Without Residue For Archive
• HFC-227ea/FM200 (Heptafluoropropane) is a kind of colourless, tasteless, not conduct electricity and no secondary pollution gas.
• The ozone-depleting potential value is zero.
• Cleanness, low toxicity, good electrical insulation, higher fire extinguishing efficiency.
• It is currently an ideal substitute for the halon extinguishing agent.
• According to different location size, different capacity, different extinguishing agent, different starting mode to assemble.
Parameters
| No. | Specifications | Parameters |
| 1 | Tank size | 8Ltr, 10Ltr, 16Ltr, 20Ltr, 30Ltr |
| 2 | Device model | XQQW8/1.6, XQQW10/1.6, XQQW16/1.6, XQQW20/1.6, XQQW30/1.6 |
| 3 | Storage pressure | 1.6MPa |
| 4 | Maximum working pressure | 2.5MPa |
| 5 | Discharge time | ≤10s |
| 6 | Maximum filling Density | 1 kg/L |
| 7 | Activating Temperature | 68℃ |
| 8 | Ambient working Temperature | 0℃～50℃ |
Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.
| Device model | Filling amount (kg) | Maximum working pressure(MPa) | Storage pressure (MPa) | Maximum coverage(m³) | Starting mode |
| XQQW8/1.6 | 8 | 2.5 | 1.6 | 11.11 | temperature sensor Activating Temperature: 68℃ |
| XQQW10/1.6 | 10 | 2.5 | 1.6 | 13.89 | |
| XQQW16/1.6 | 16 | 2.5 | 1.6 | 22.22 | |
| XQQW20/1.6 | 20 | 2.5 | 1.6 | 27.78 | |
| XQQW30/1.6 | 30 | 2.5 | 1.6 | 41.67 |
Advantages
Ceiling mounted style has two types of system, the advantages are the following:
· Consideration of small protection area. Some areas, like server rooms, electric rooms, etc., are very small and require very few fire extinguishing agents. Hang type system can play a role in this.
· Small occupation of space. Since the protection zone of the fire extinguisher is very small, there may not be much space for other machines, devices, or objects. The ceiling mounted style has a small but efficient function in providing fire suppression and total coverage to the entire room.
· Easy installation and transportation. Due to its relative light and small size, it can be held and fixed by one person. However, the temperature controlled model cannot be installed in principle or practice more than one piece at a time.
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
